Powerful, quiet and perfectly integrated - these are the attributes of the Bafang M-Series. Due to the compact design, the mid-motors of the M-Series can be installed inconspicuously on many types of eBike. A key characteristic is their extremely harmonious handling.

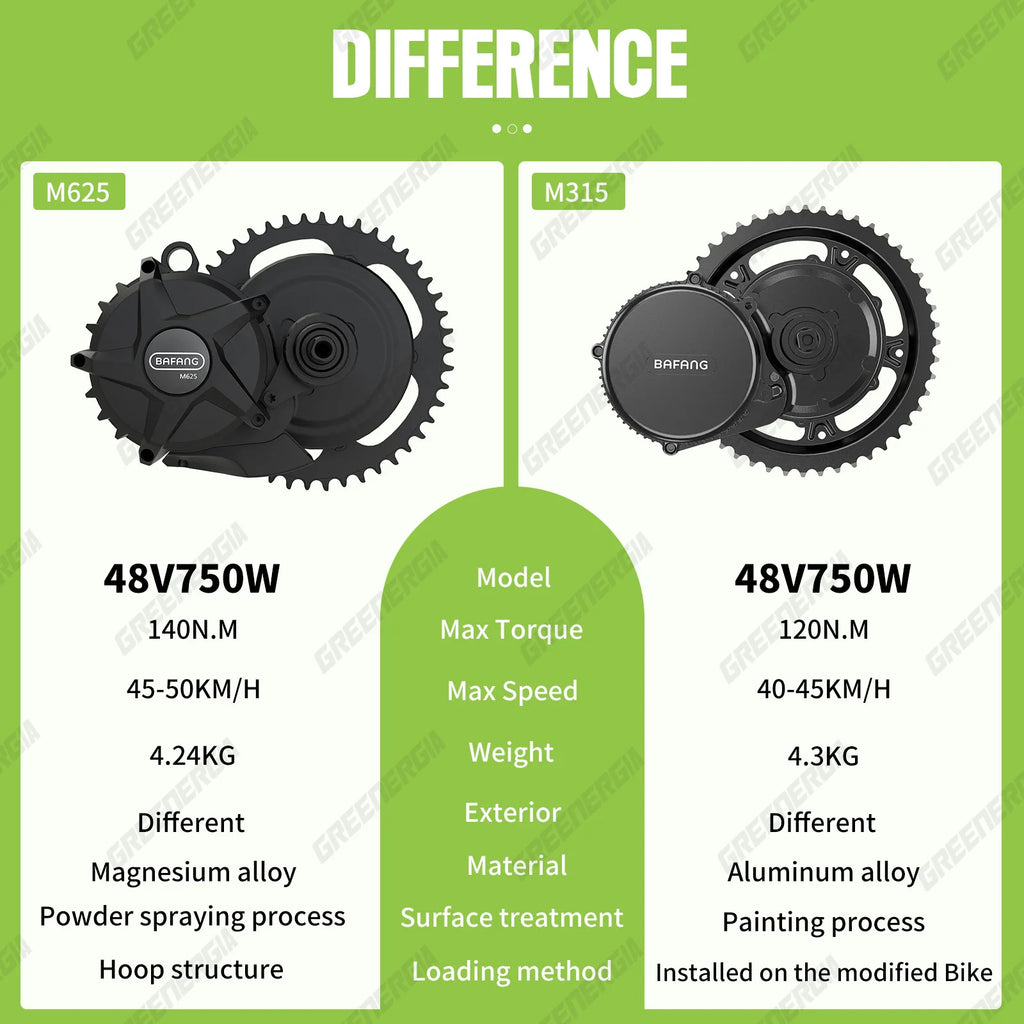

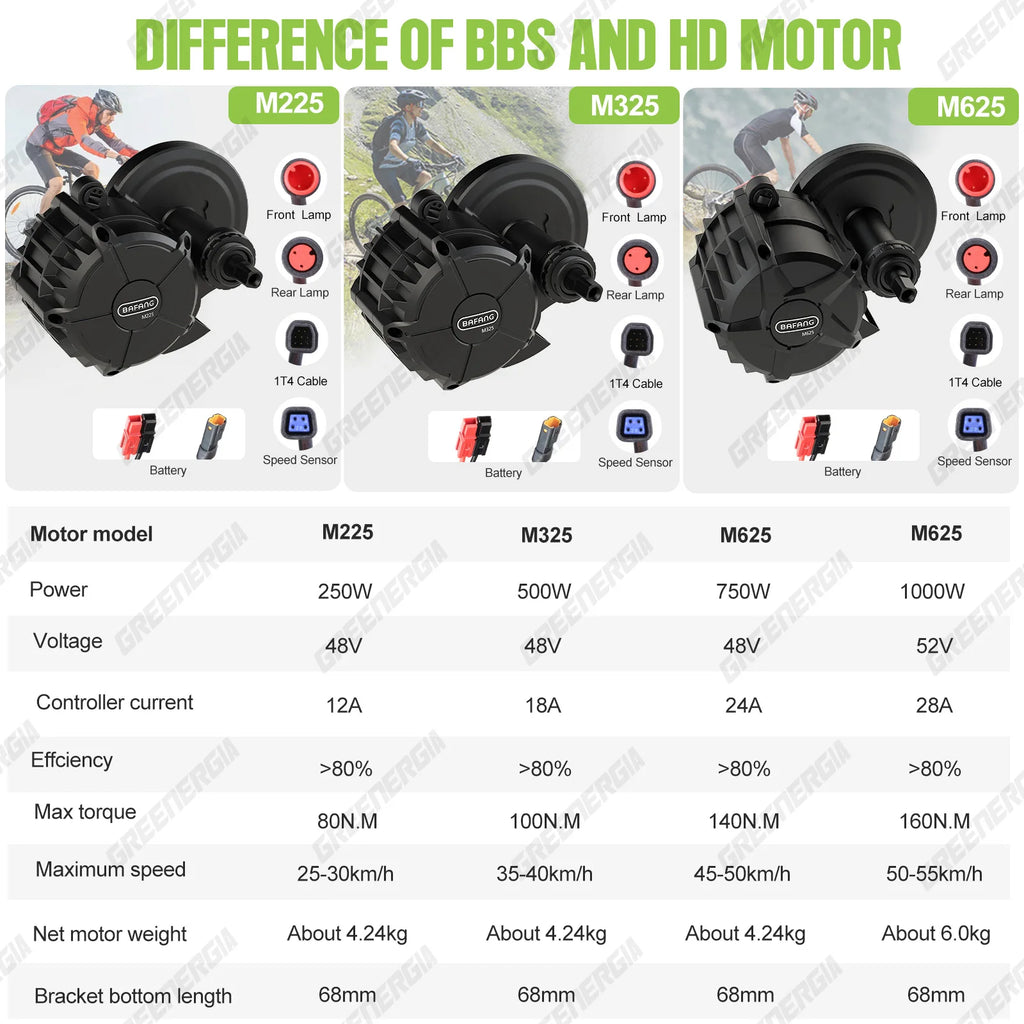

M625

Super strong and efficient, this mid-drive system with a rated power of 750 or 1000W and a max. torque of 160Nm is an ideal upgrade for vehicles such as eSpeed and eCargo bikes. Compatible with frames with 68-73 mm bottom bracket width.

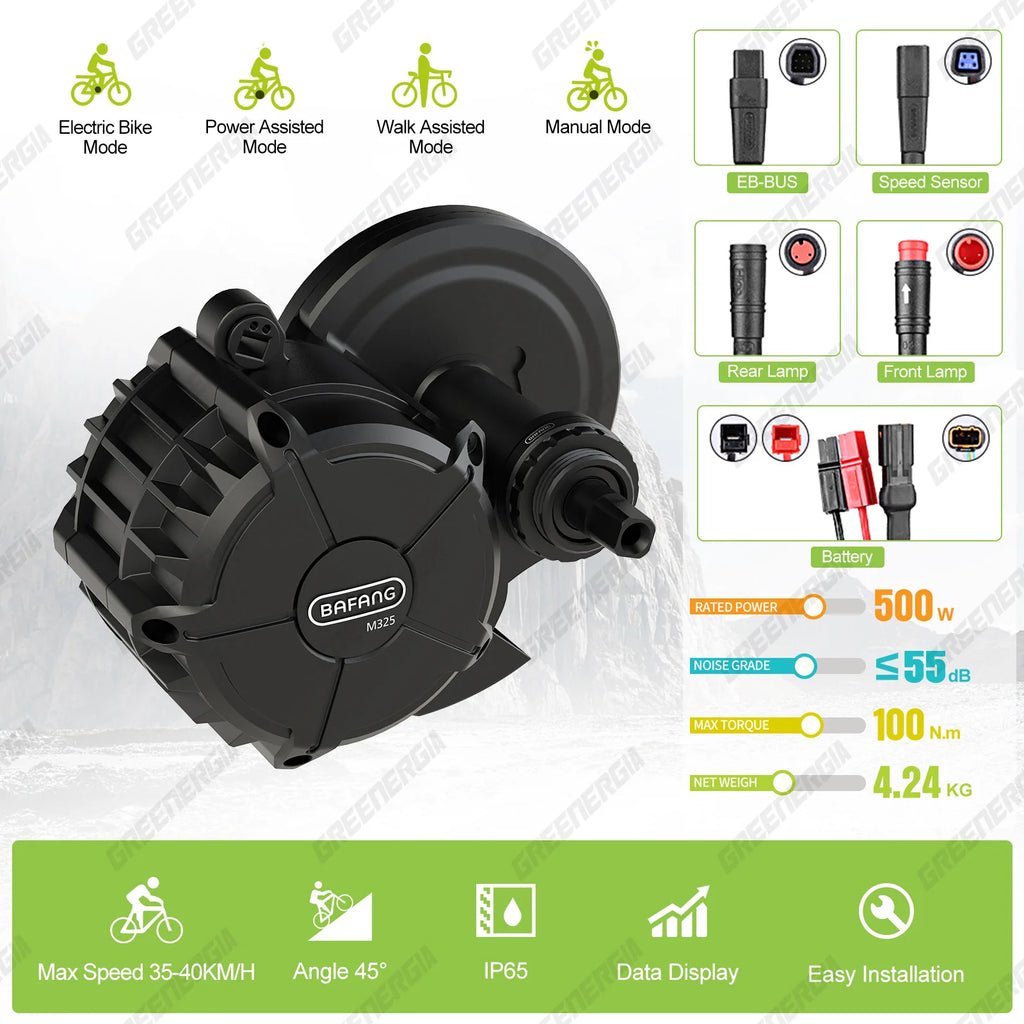

M325

Light but strong and efficient, this mid-drive system with a rated power of 500W and a max. torque of 100Nm provides ideal support for vehicles such as eTricycles, eTour and eCity bikes. Compatible with frames with 68 mm bottom bracket width.

M225

Powerful, cost effective, maintenance-friendly and easy to install. With its 250W rated power and 80Nm of max. torque, it delivers a more than welcome support to your ride. Compatible with frames with 68 mm bottom bracket width.

Packing List Motor Kit

1.Optional Bafang Motor 1pcs

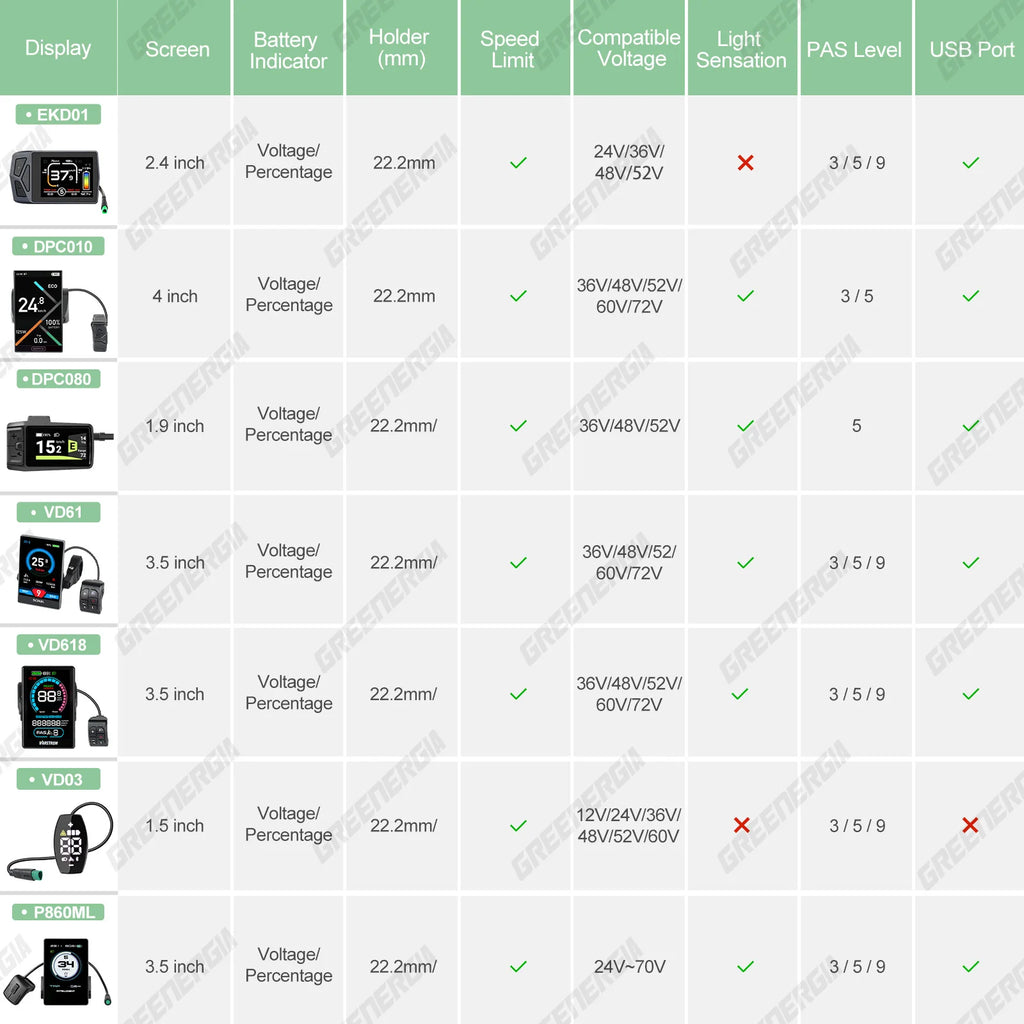

2.Optional display 1set---optional

3.Brake lever 1 pair

4.Thumb throttle 1set

5.46T Sprocket 1pc(Without guard)

6.Crank 1pair

7.Speed sensor and magnets 1set

8.1 to 4 cables 1pc

9.Lock nuts 1set

10.Mouting tool and loop

11.Ebike headlight and tailight

12.1T4 cable
